Prepared statements

Prepared statements are SQL queries that are sent to the server in advance. They are parsed by the server, avoiding that cost at execution time. The client can request a statement to be executed by using its name and by passing optional parameters.

PgDog supports prepared statements in transaction mode. In session mode, no special handling is required.

How it works

When the client sends a Parse message, PgDog records the query in a global cache. If it's a new query, PgDog creates a new prepared statement entry and gives it a unique name.

The Parse message is then renamed and sent to Postgres. This way, multiple clients can send the same prepared statement through PgDog without causing "duplicate prepared statement" errors.

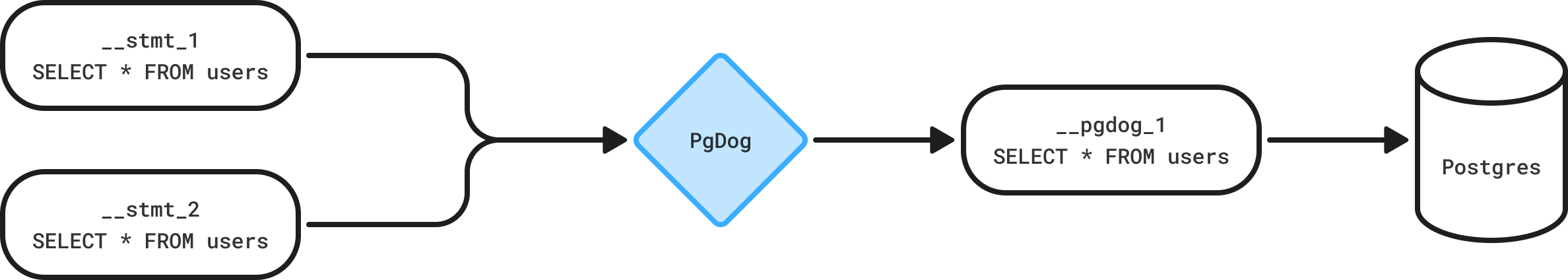

Prepared statements flow

While the global cache helps with statement reuse, each client keeps its own mapping of prepared statement names. This allows the clients to send Bind and Describe messages, as if they were using a dedicated server connection.

Close messages are ignored and CloseComplete is returned to the client. PgDog manages prepared statements at a global level, so clients can't evict a prepared statement potentially used by another client.

Cache limit

Prepared statements are stored in memory. On machines constrained by RAM, it's reasonable to introduce a limit on how many statements should be stored. This limit is controlled through configuration:

pgdog.tomlHelm chart

[general]
prepared_statements_limit = 500

preparedStatementsLimit: 500

This limit is strictly enforced on server connections: if a prepared statement needs to be sent to a server connection and it would exceed this capacity, the least recently used statement will be closed to allow for more space on the connection.

Since clients re-use prepared statements, this limit isn't enforced for clients: they can prepare as many statements as they wish (and you have memory for). Each statement keeps a counter of when it's used by a client. If the counter reaches zero, i.e., all clients either closed it explicitly or disconnected, the statement is removed from the global cache.

Statement TTL

Postgres builds an execution plan when a statement is prepared and keeps it for the lifetime of the statement. Since PgDog keeps server connections open for a long time, a plan can stay in use long after the data it was built for has changed.

To mitigate this, PgDog can be configured to close statements on server connections after some time. After the statement is closed PgDog will recreate the statement seamlessly when the next client tries to use the same statement again.

To enable TTL, extend pgdog.toml with the following settings:

[general]
prepared_statements_ttl = 300_000
prepared_statements_ttl_jitter = 30_000

Jitter setting is helpful to avoid all statements expiring at the same time, which could cause a noticeable spike in server load.

By default the TTL is disabled and statements stay prepared for the lifetime of the server connection.

Tracking used statements

The number of prepared statements and what they are can be tracked by executing this command on the admin database:

CommandOutput

SHOW PREPARED;

   name    |                       statement                       | rewrite | used_by | memory_used
-----------+-------------------------------------------------------+---------+---------+-------------
 __pgdog_1 | SELECT abalance FROM pgbench_accounts WHERE aid = $1; |         |       4 |         144
(1 row)

Additionally, each server connection entry in the admin SHOW SERVERS view will report the number of currently prepared statements.

Metrics

The number of prepared statements in the global cache, and for each connection pool, is reported in OTEL and OpenMetrics exporters.

Simple protocol

While prepared statements are typically sent using the extended protocol (i.e., Parse, Bind, Describe messages), Postgres supports preparing statements using the PREPARE command, and executing them using the EXECUTE command.

PgDog supports rewriting these prepared statements to make sure their names are globally unique, just like with the extended protocol, for example:

Original statementRewritten statement

PREPARE test AS SELECT * FROM users;

PREPARE __pgdog_1 AS SELECT * FROM users;

Statements sent over the simple protocol are not checked against the global cache. Each new statement is given a unique global name. Since this requires PgDog to parse each incoming query, and that's computationally expensive, this feature is disabled by default.

You can enable simple statement rewrites in pgdog.toml:

pgdog.tomlHelm chart

[general]
prepared_statements = "full"

preparedStatements: full

Statements prepared using this method can be executed normally with Bind and Execute messages. Result data types can be inspected with Describe, just like a regular prepared statement.

Sharding support

Currently, EXECUTE command for sharded prepared statements is not supported. Such commands will be sent to all shards.

Unnamed statements

Unnamed (aka anonymous) prepared statements are not cached and are sent to Postgres connections as-is.
